ADF Self-check: Yes(TEST Button)
Arc Sensor: 4
Auto darkening: Yes
Auto-Darkening: YES
Brand Name: SAFEUP
Cartridge Size: 335*235*230mm
Certification: CE
Grind: Yes(DIN4)
Helmet Material: PP
Hign-concerned Chemical: None
Light State: DIN4
Low Batt: Yes(Red LED)
Model Number: UN109
Optical Class: 1111/1112
Origin: Mainland China
Power Supply: Solar Cell + Lithium Batteries
Sensitivity: 1/25000 s
Shade adjustable: DIN5-8/9-13
Solar Powered: YES
Switch Time: 1/25000 s
TIG Amps Rated: AC/DC TIG,>5amps
Ture Color Filter: Yes
View Area: 100*97 mm
Warranty of core components: 1 year
New link, limited time discount!!

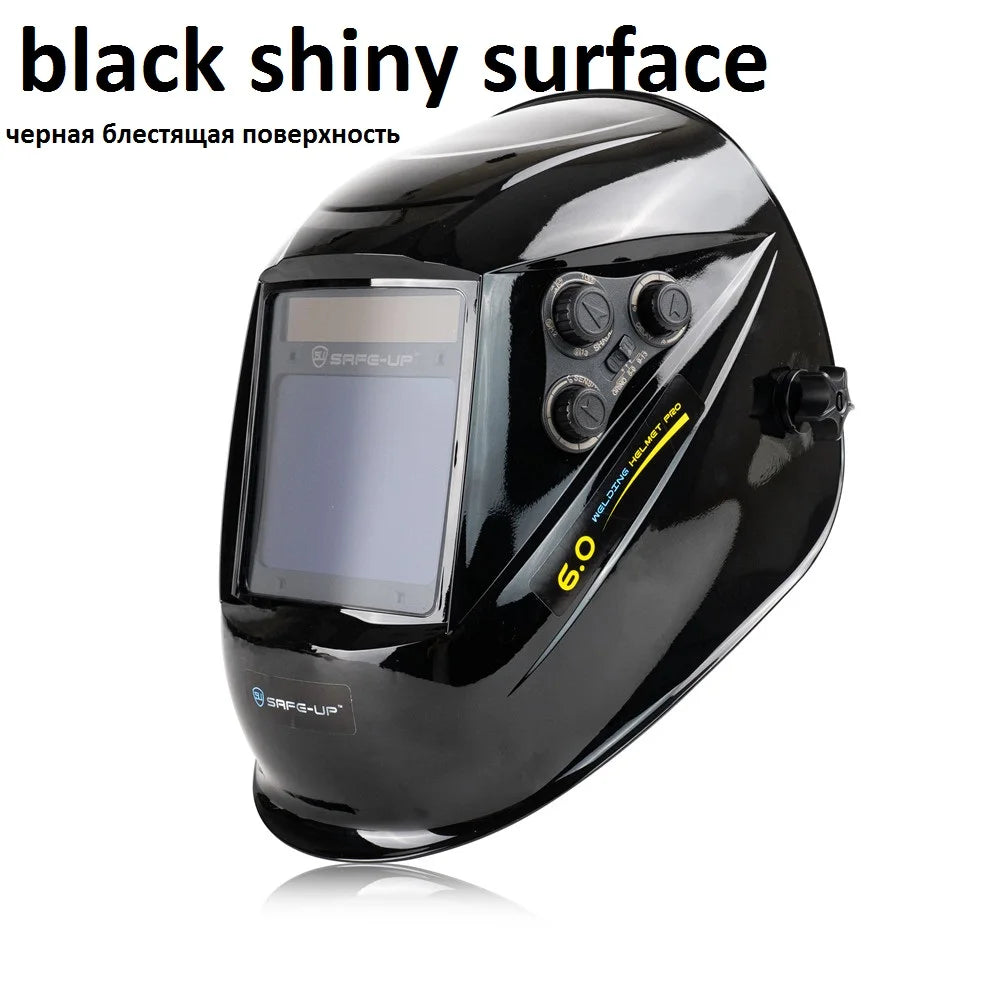

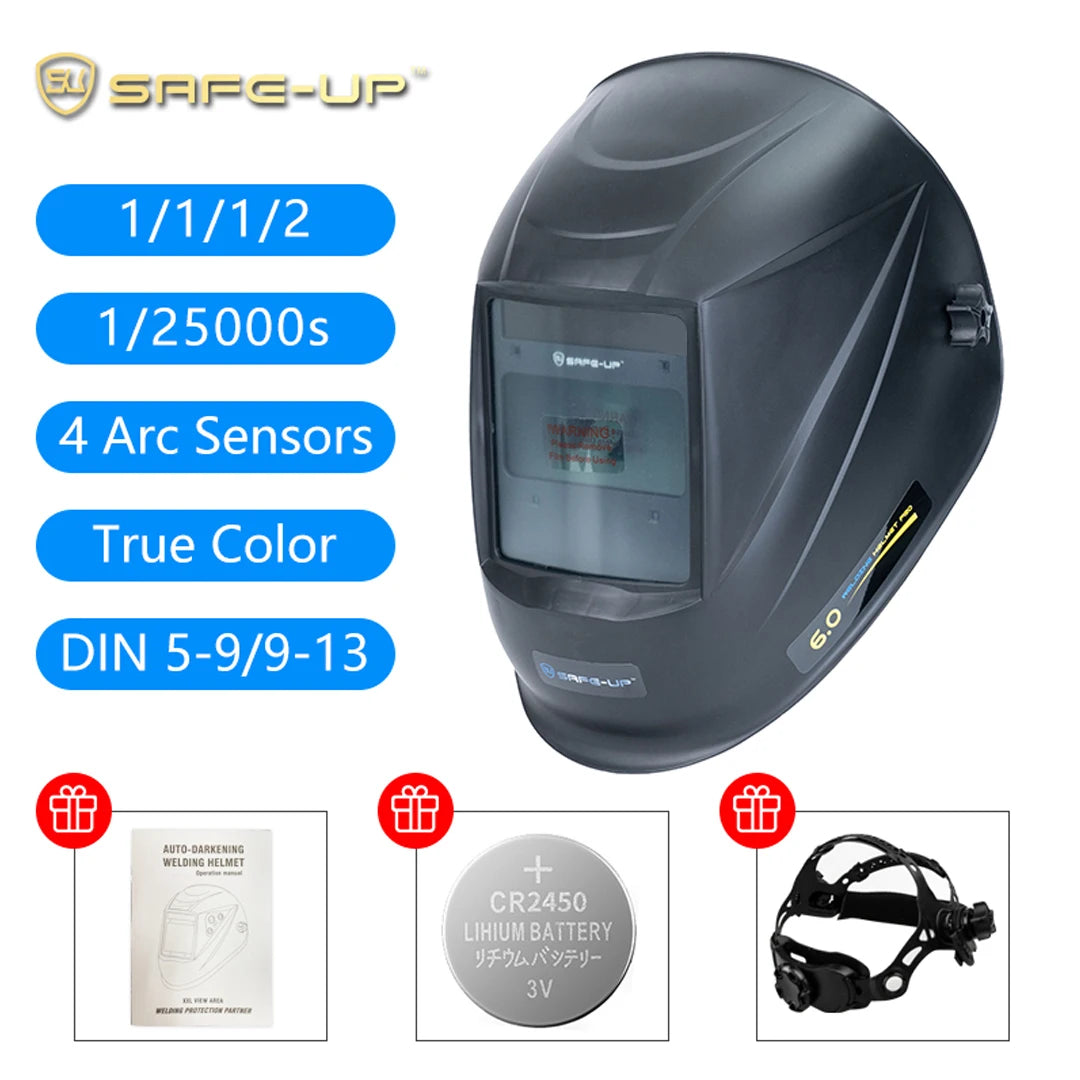

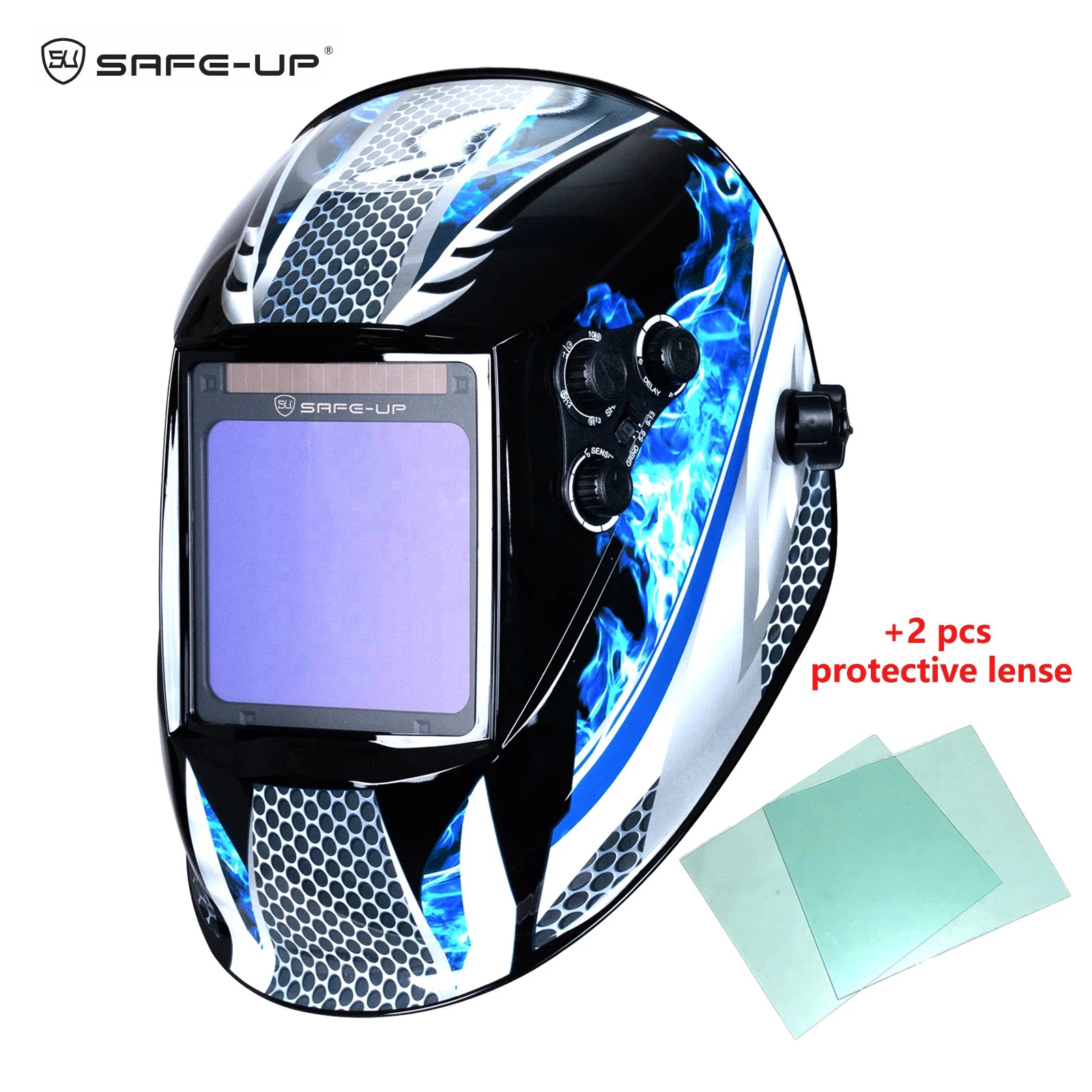

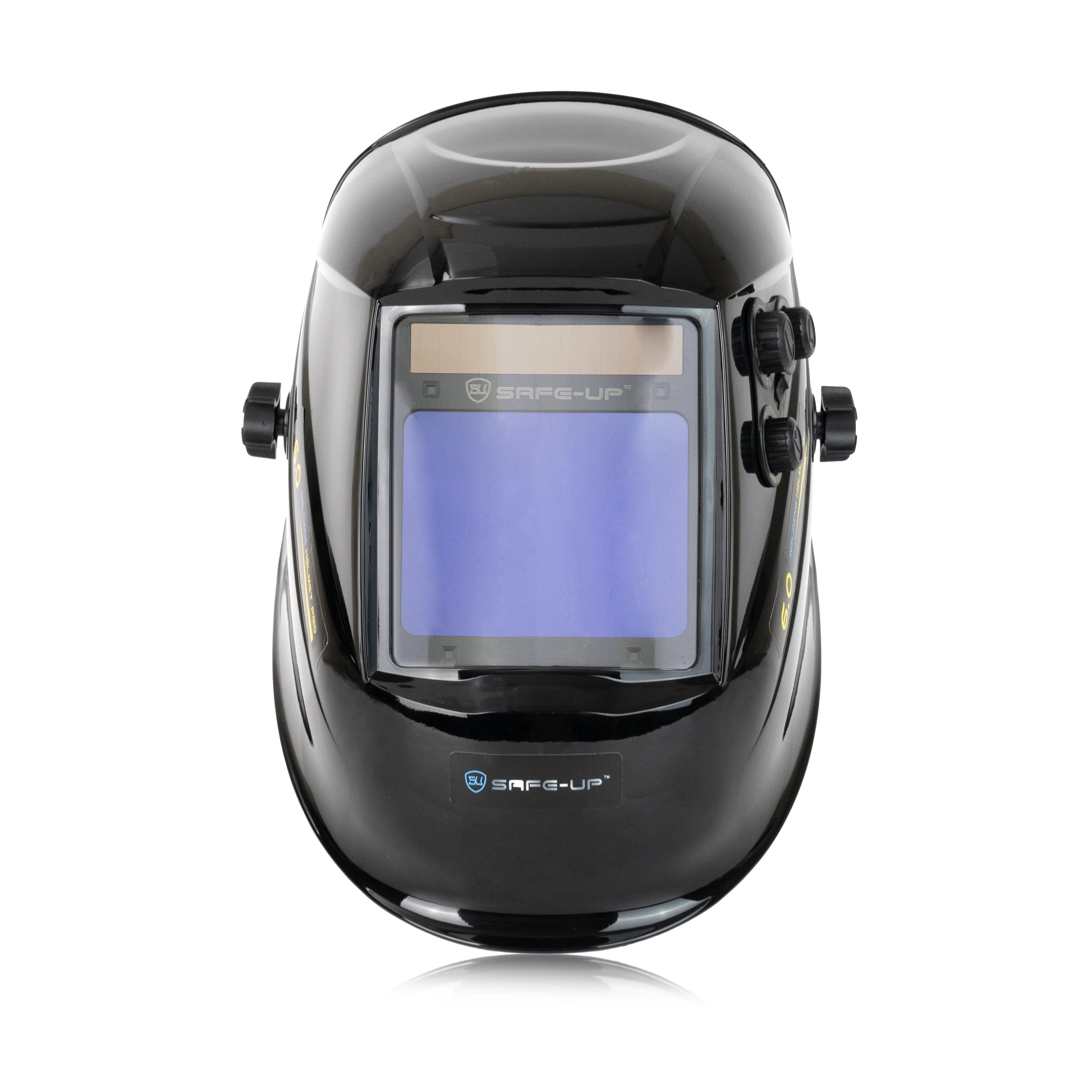

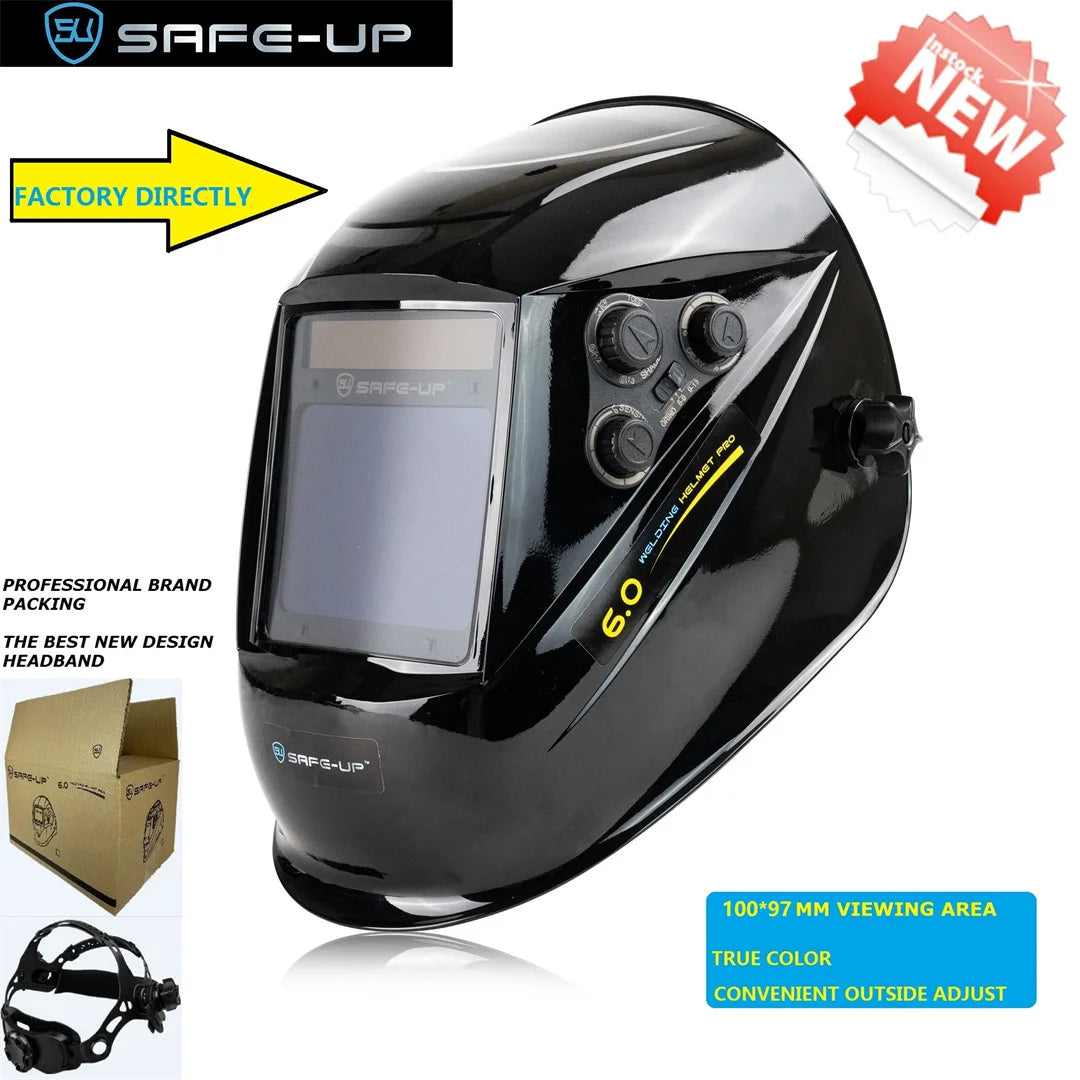

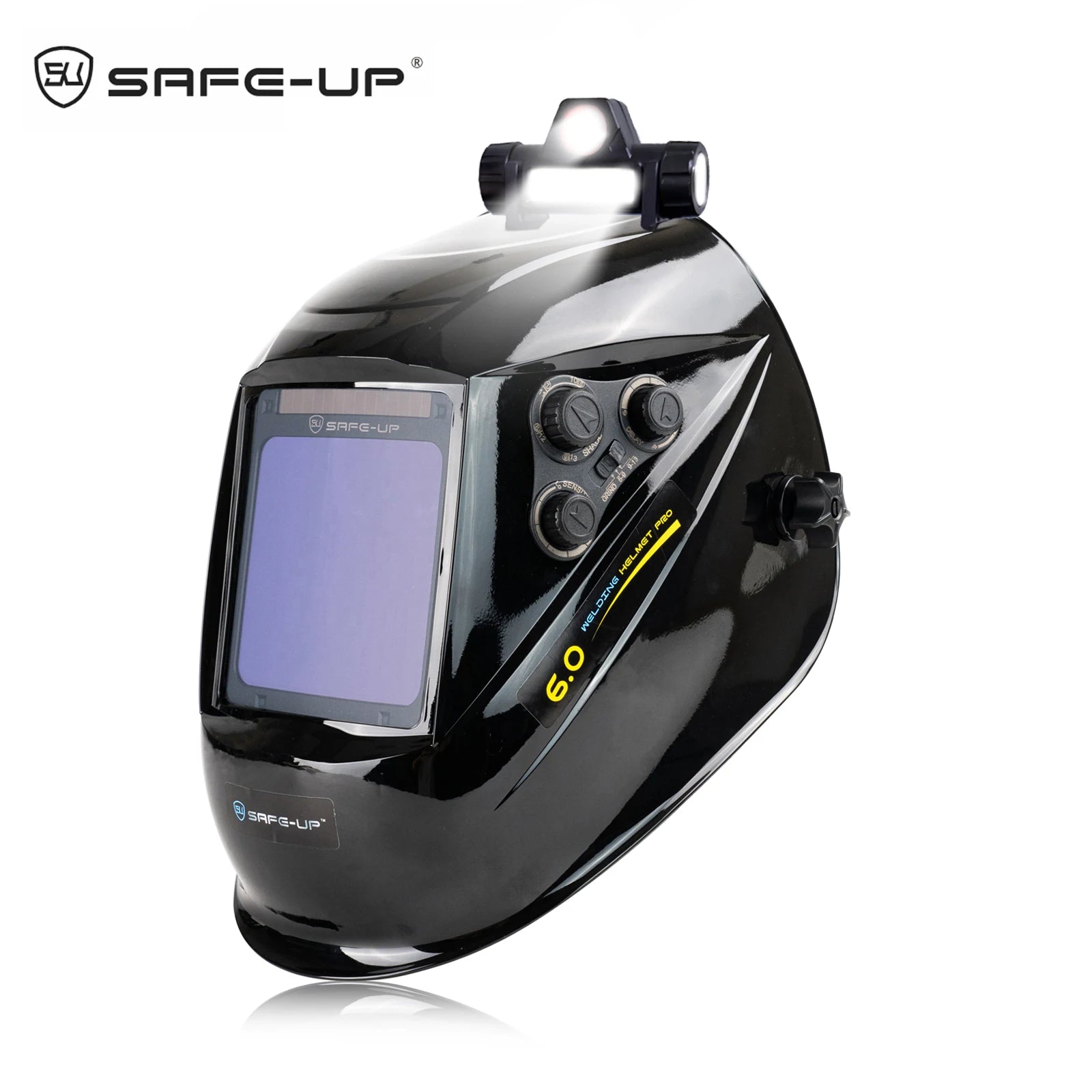

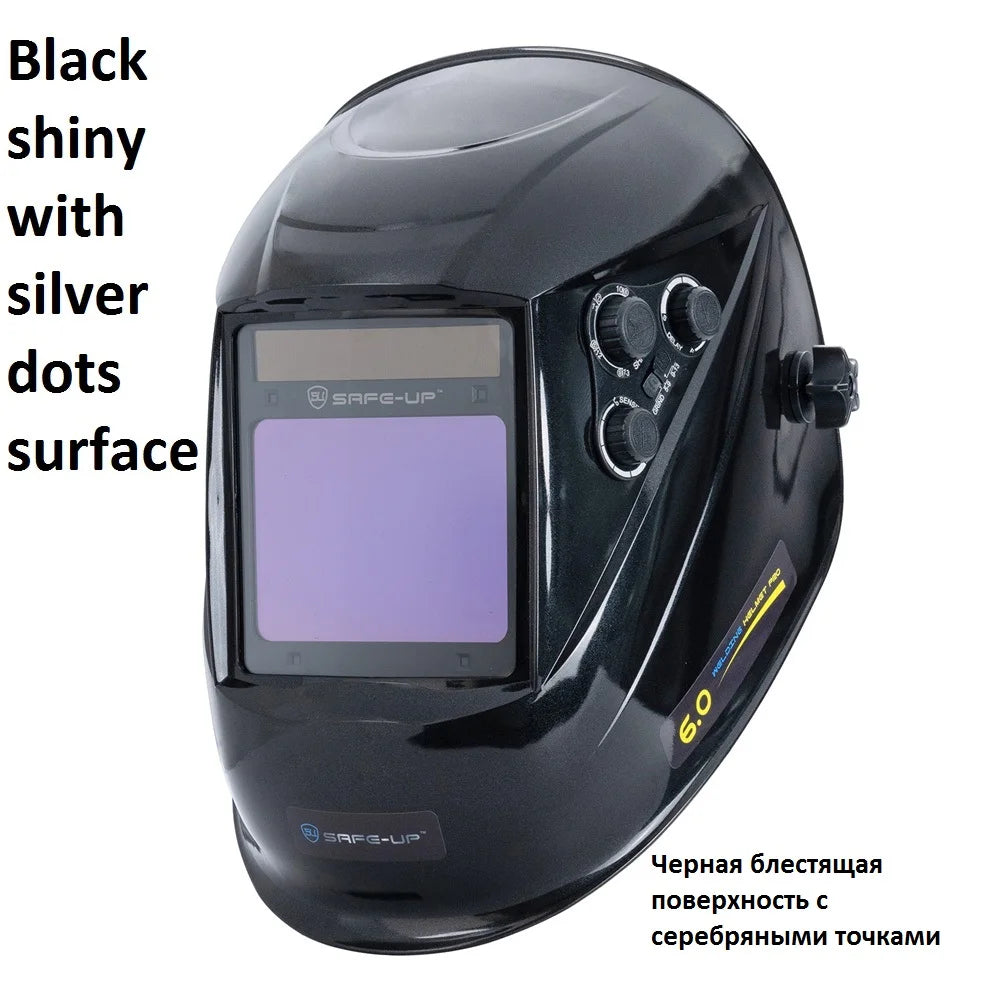

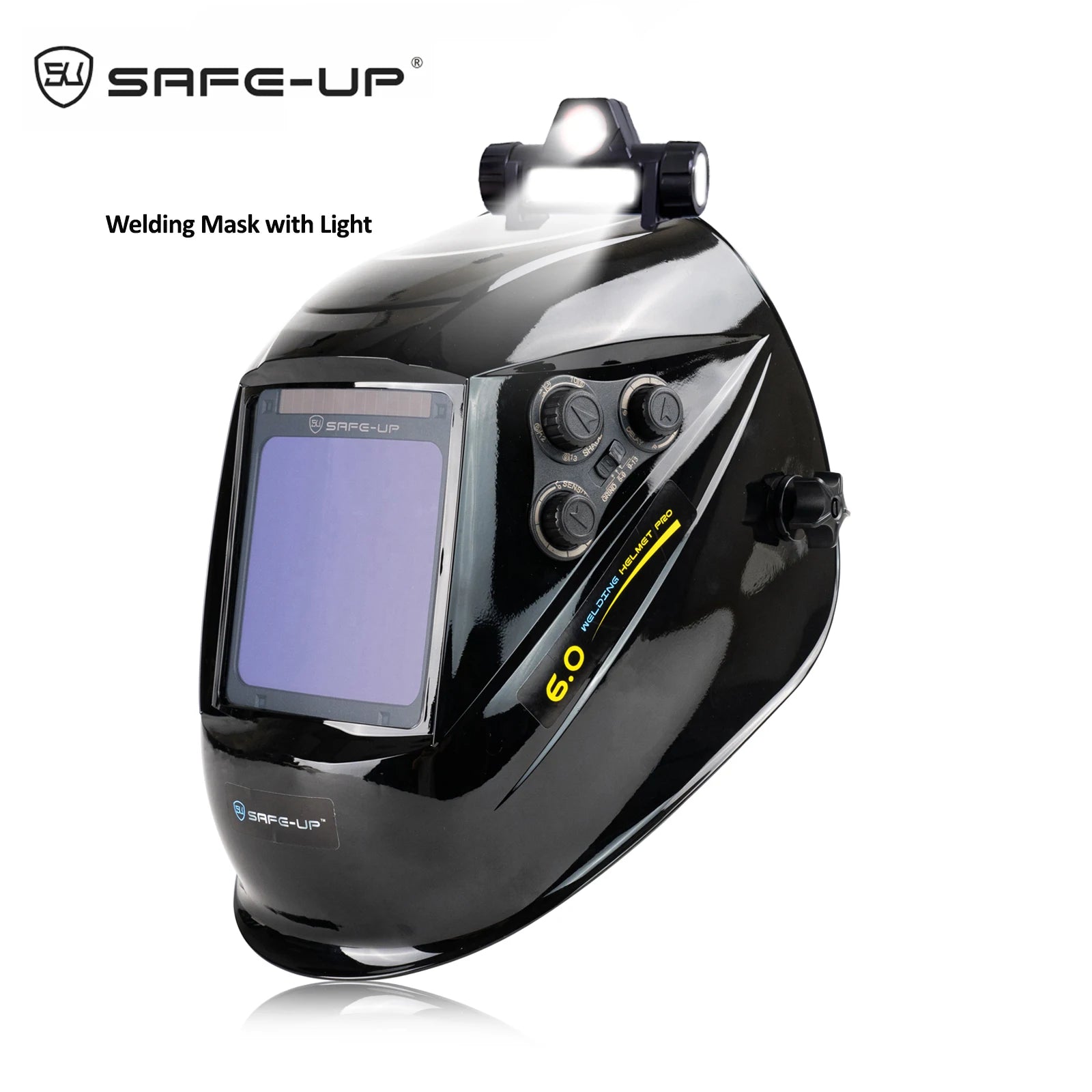

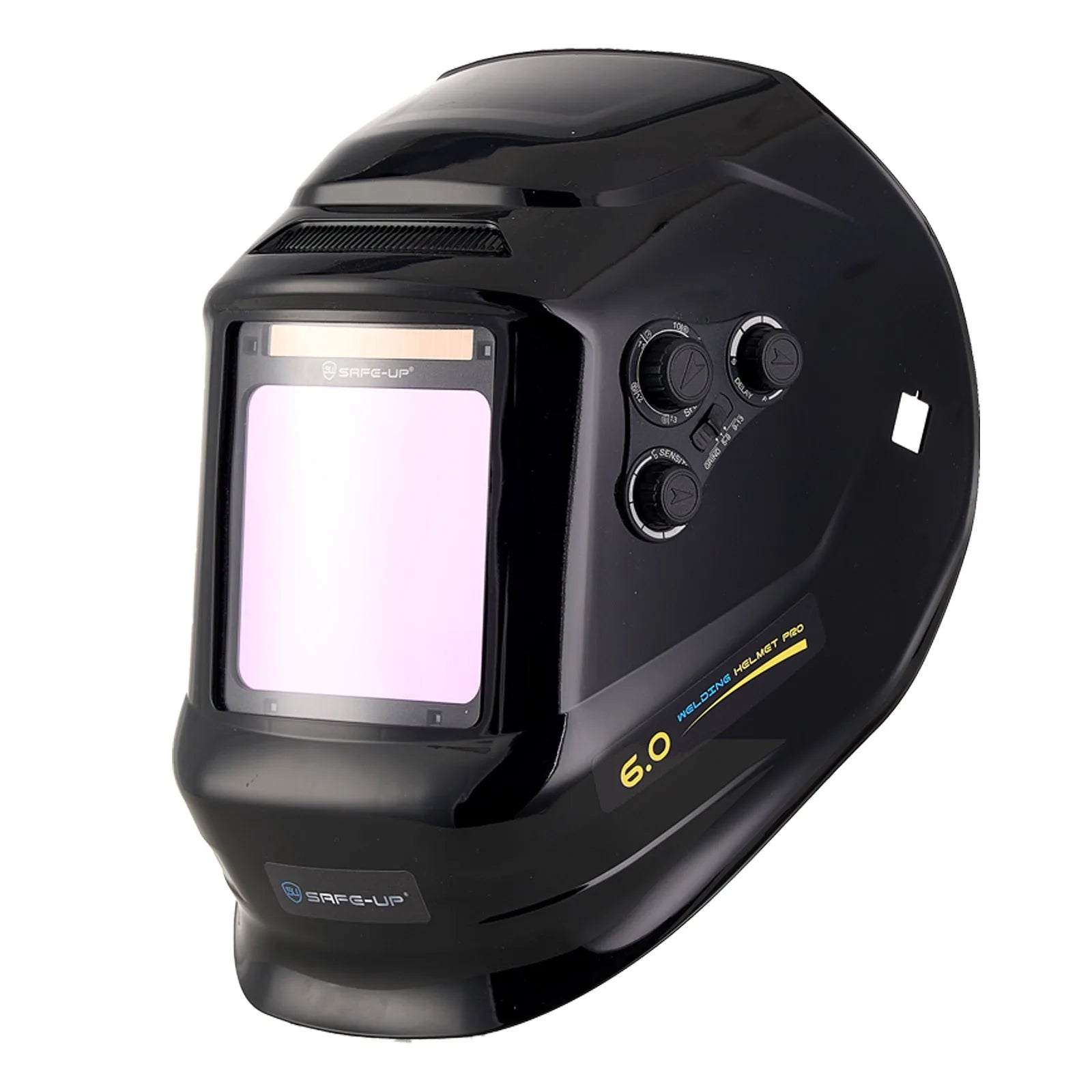

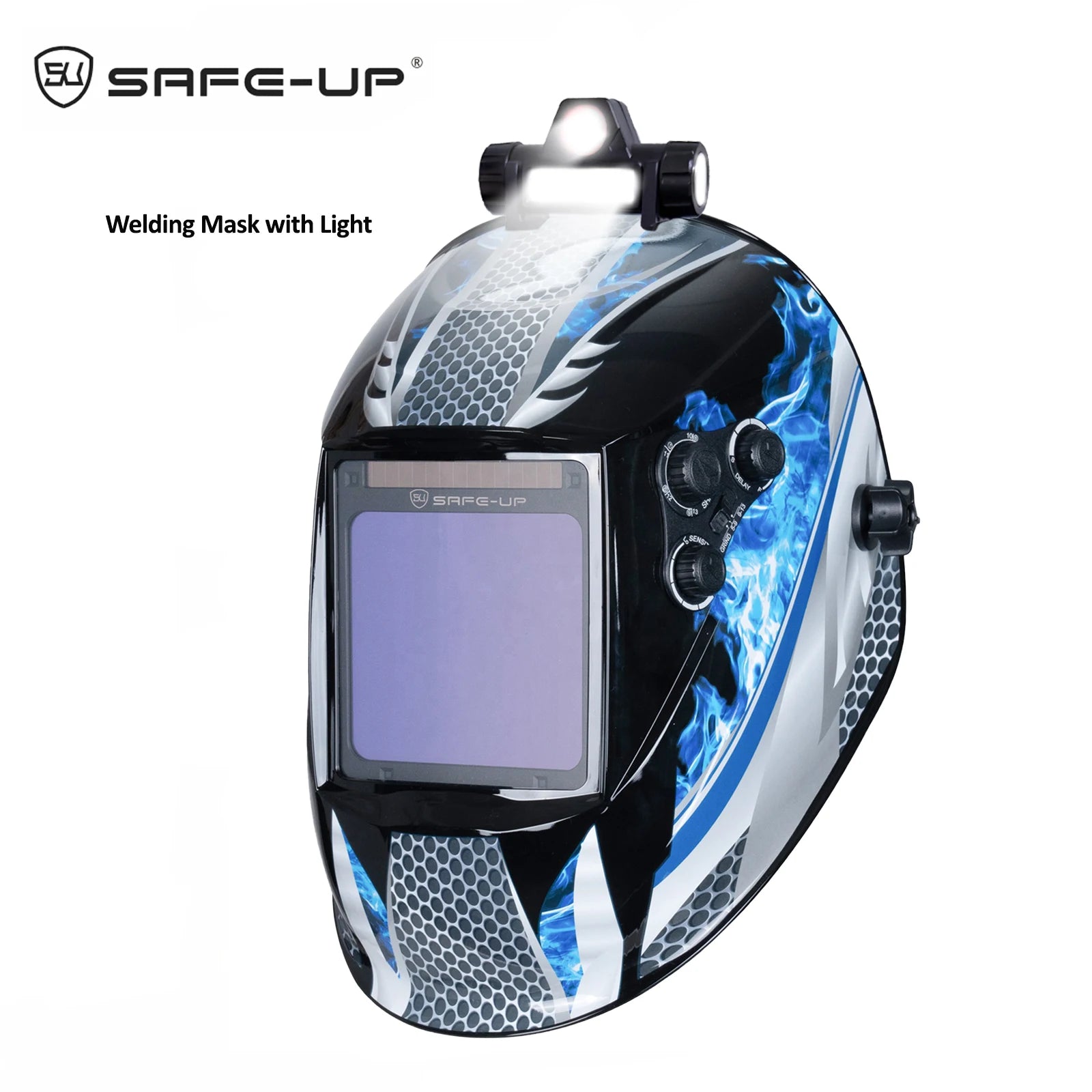

MIG MAG TIG TRUE Color 4 Sensors Solar Cell Powered Expensive Auto
Darkening Welding Helmet Welding Mask
FASHIONABLE NEW MODELS
UN109 SERIES

Function:
Auto-Darkening Welding Helmets are designed to protect the eye and face from sparks, spatter, and harmful radiation under normal welding conditions auto-darkening filter automatically changes from a light state to a dark state when an arc is struck. And it returns to the light state when welding stops.
* Auto-Darkening Welding Helmets is designed & equipped with a special turnover(up & down)headband mechanism. When welder turns over the helmet to welder's head top, the headband mechanism makes helmet's gravity center to be more lower, and be coincided with the center of welder’s head. The design of welding helmet greatly lowers the fatigue of welder’s head(& neck)and make welder feel more comfortable than before while at working.
* At the moment of starting welding, it automatically changes filter screen from clear to dark in only 1/25,000 sec.
* Dark to clear delay adjustment: Operator can vary the time for the filter to return to clear state.
* Sensitivity can be adjustable by turning the sensitivity-setting switch to high(low) position.
* At the moment of stopping welding, the filter screen automatically changes from dark to light state according to your set
per-delay time. (Turning the time-setting switch to the “Short” position, then, it can vary at 0.1s~0.3s; Turning the time,
setting switch to the “long” position, then, it can vary at 0.6s~0.8s.)

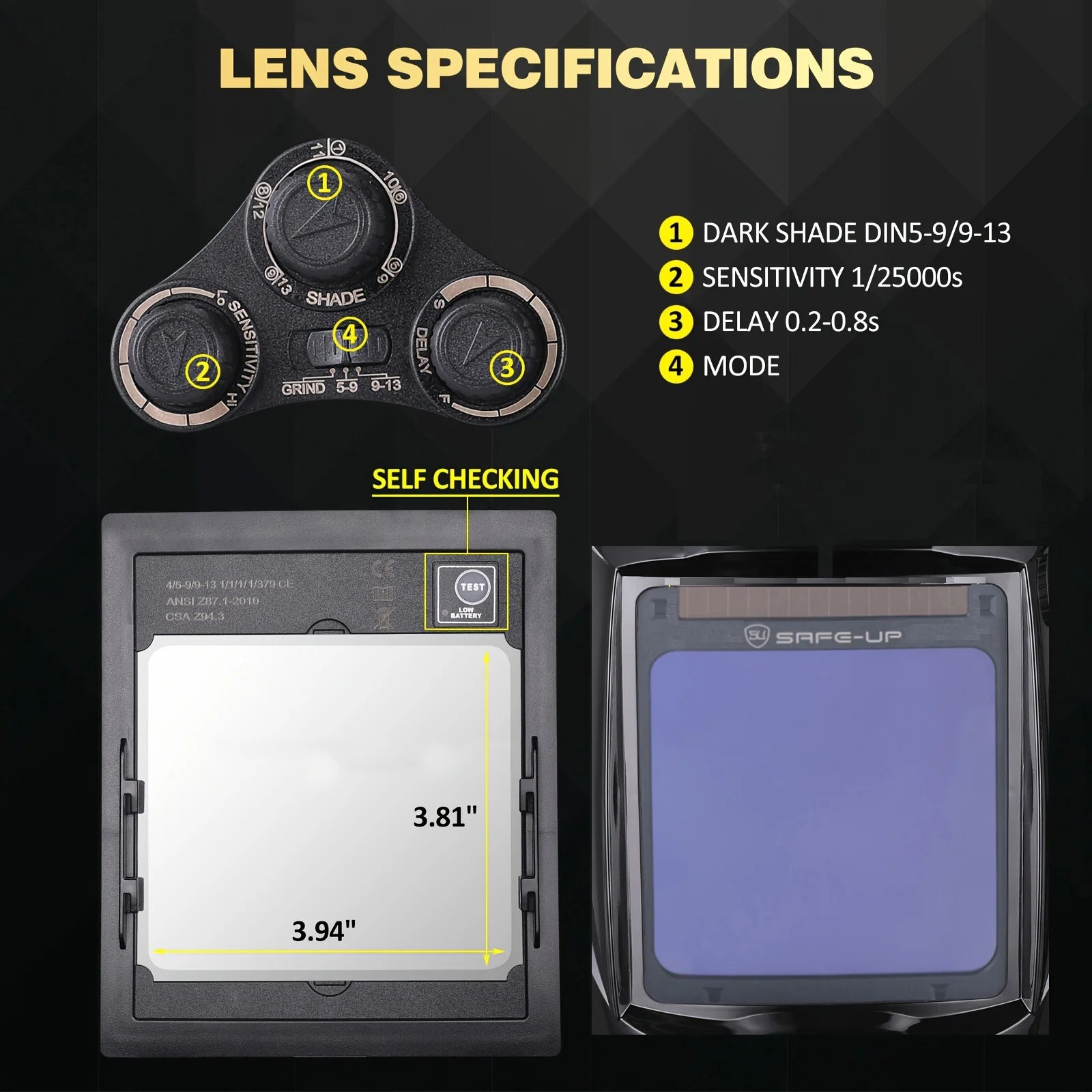

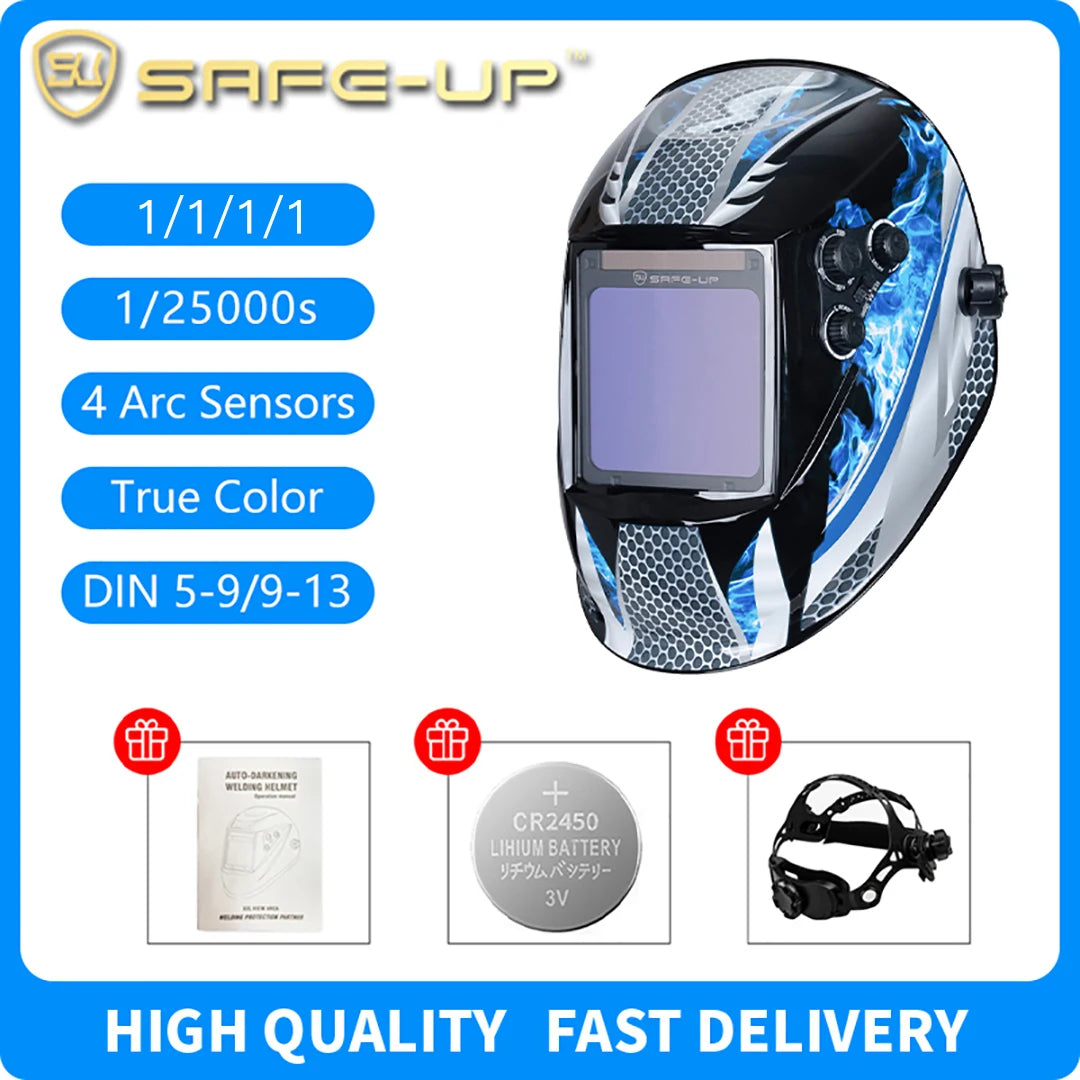

UN109 Auto darkening welding helmet specification:
Filter size: 114×133×10mm
Optical Class: 1/1/1/1
Viewing Area: 100×97mm
Light state: DIN.4
Dark state: DIN.5-8/9-13
Switch time: 1/25000s
Delay time: 0.2-0.8s adjustable
Power supply: Solar cells, CR2450 lithium batteries
Power on/off: Fully automatic
Shade knob: Out
Arc sensor: 4 pieces
Sensitivity: adjustment, Grinding, Test,Low Bat,
Welding helmet weight: 420g
Suitable for ARC, TIG, MIG, Spot, Micro, Wire, AC, DC, and Plasma Welders and Plasma Cutters.
