$2,485.31 USD
Shipping calculated at checkout.

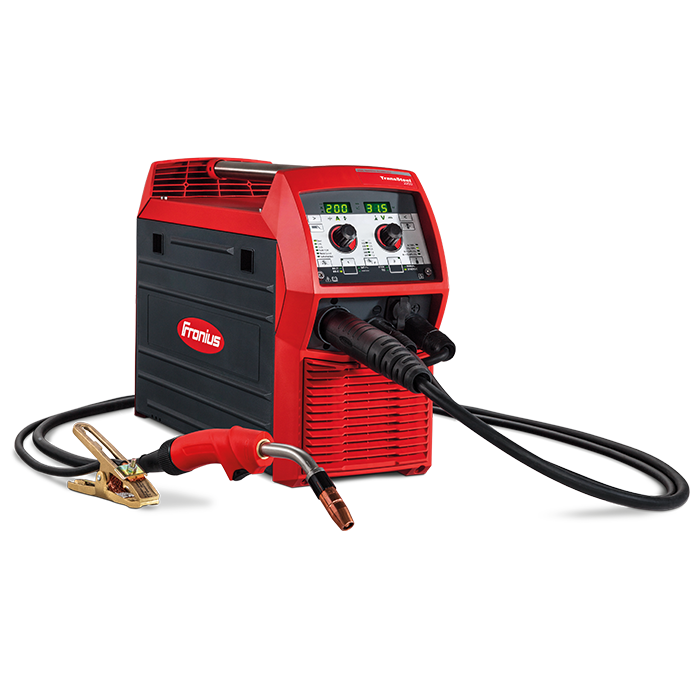

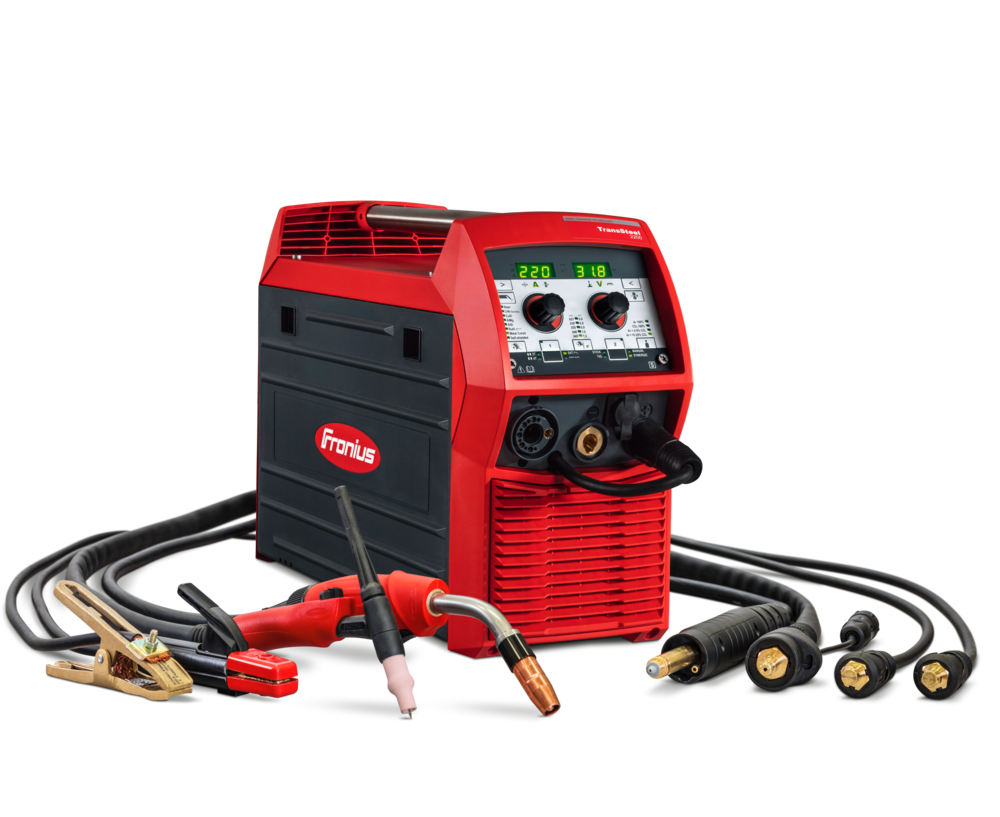

The TransSteel 2200 is a compact, 3-in-1 solution. It is the first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a single device. The TransSteel 2200 is characterized by the intelligent design of the device, ease of use, robustness and a high level of reliability. Weighing only 15.5 kg, it is also one of the lightest devices on the market.
Estimated Shipping: 2 Weeks
GENERAL DATA
| Mains voltage | 230V |
|---|---|
| Mains voltage tolerance | -20% / +15% |
| Mains frequency | 50-60Hz |
| Welding current min. | 10 A |
| Welding current max. | 230 A |
| Welding current / Duty cycle [10min/40°C] | 210A / 30% MAG, 180A / 35% MMA, 230A / 35% TIG |
| Welding current / Duty cycle [10min/40°C] | 170A / 60% MAG, 150A / 60% MMA, 200A / 60% TIG |
| Welding current / Duty cycle [10min/40°C] | 150A / 100% MAG, 130A / 100% MMA, 170A / 100% TIG |
| Open-circuit voltage | 90 V |
| Degree of protection | IP23 |
