Lincoln Power MIG® 140 MP Multi-Process Welder
Portable Power for Weekend Warriors and DIY Pros

The Lincoln Power MIG® 140 MP is the perfect multi-process welder for hobbyists, DIYers, and mobile welders who want capability without complexity. With MIG, flux-cored, stick, and DC TIG functions all in one compact machine, the 140 MP delivers serious versatility powered by a standard 120V household outlet.

Out of the box, it’s ready for MIG and stick welding—and with optional accessories, it can easily tackle TIG and aluminum spool gun welding. Weighing in at just 34.5 lbs, this unit is made for portability without sacrificing performance.

⚠️ Note: DC TIG is compatible with mild and stainless steel only. For aluminum welding, a Lincoln SG100 Spool Gun (K4360-1) is required (sold separately).
Optional TIG torch and foot pedal also sold separately.

Key Features

🔧 True Multi-Process Welding
• Weld MIG, Flux-Cored, Stick, and DC TIG (TIG & spool gun sold separately)

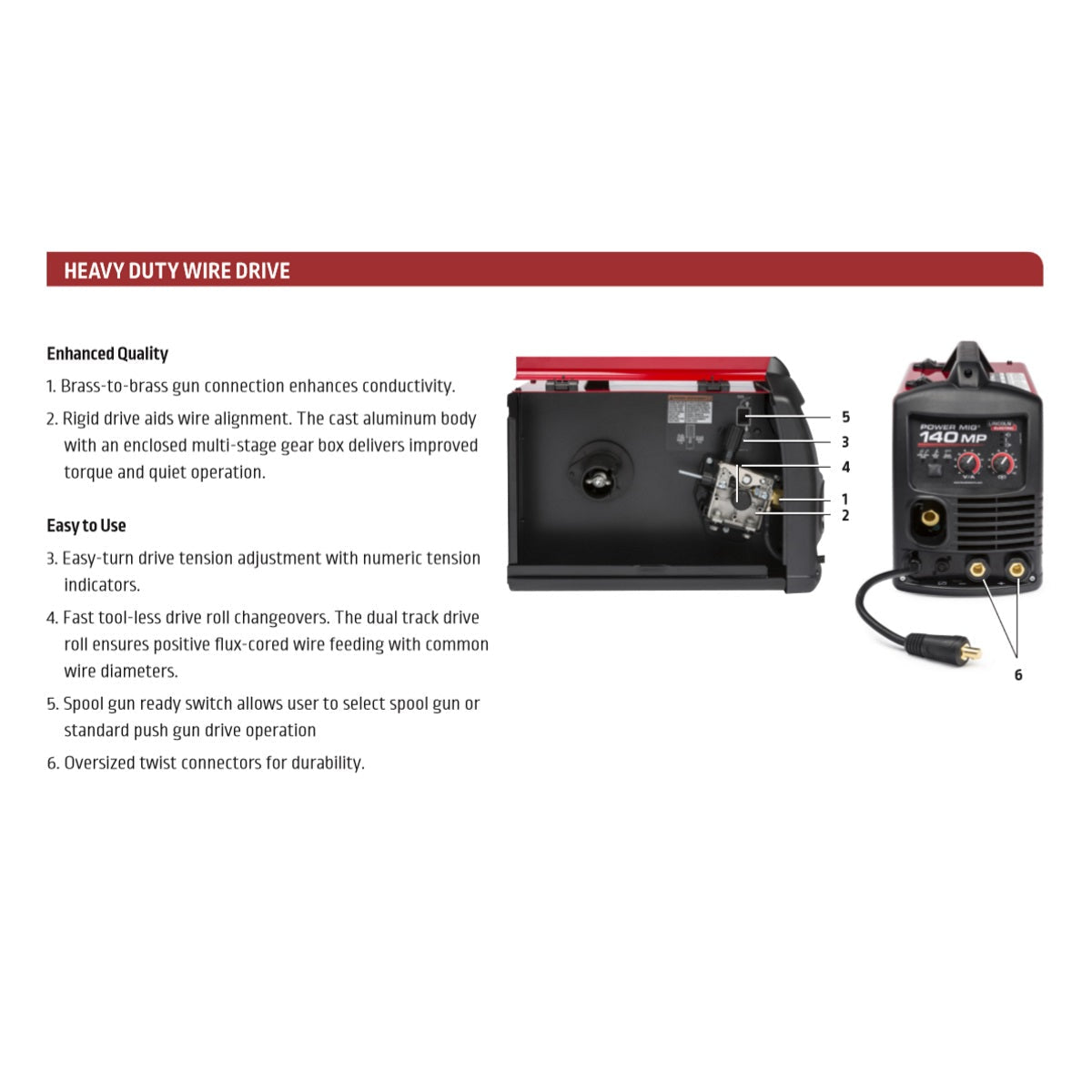

⚙️ Tool-Less Drive Roll Changeover
• Quick swaps with no tools needed—maximizing uptime

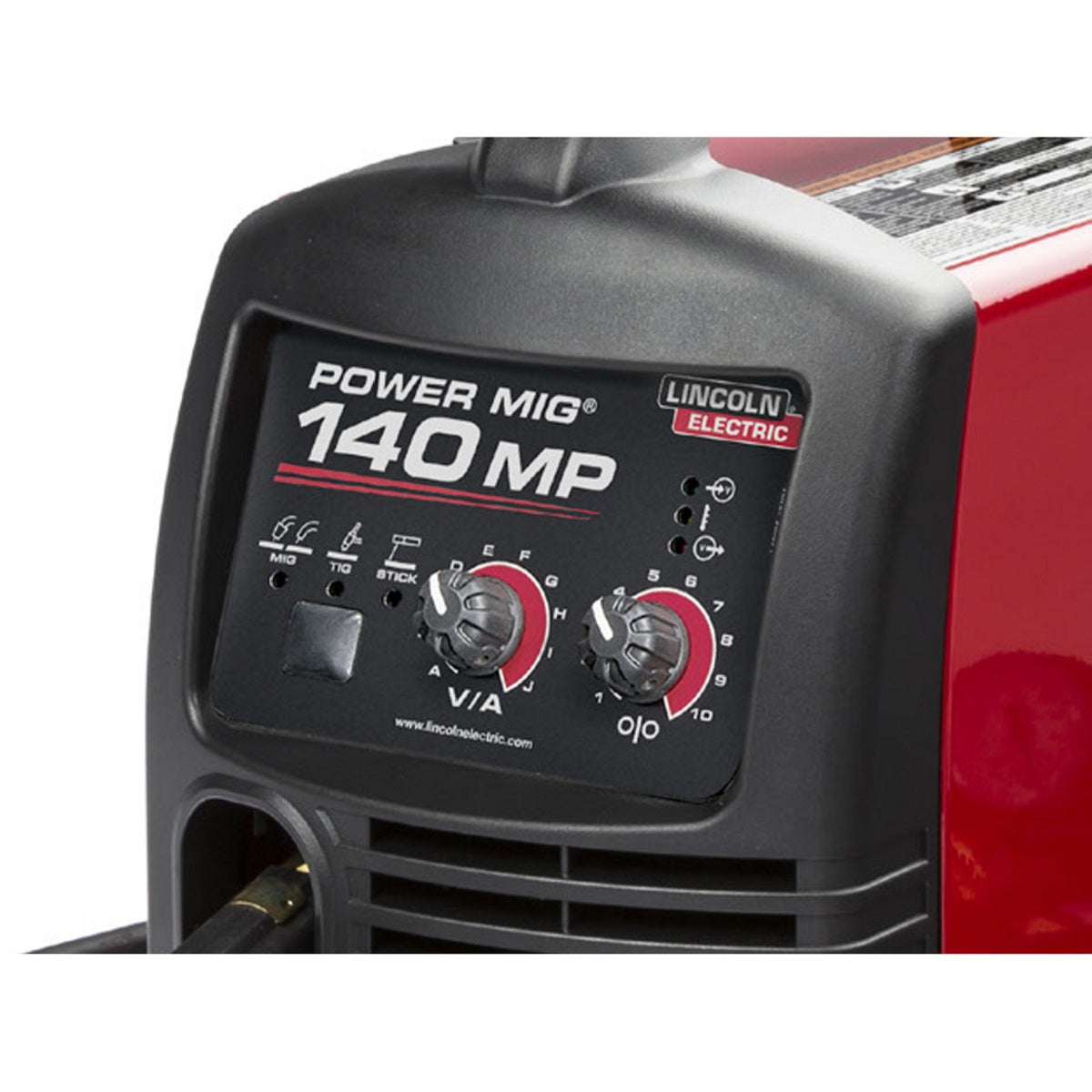

🎛️ Simple, Intuitive Controls
• Two-knob interface and single-button process selection for easy operation

🔌 Spool Gun Ready
• Integrated switch allows seamless toggling between MIG and spool gun use

🔗 Durable Connections
• Oversized twist-connect terminals ensure a solid, long-lasting hookup

Quick Specs

• Input Power: 120V | Single Phase | 20A
• Duty Cycle:
– MIG: 60% @ 95A
– TIG: 60% @ 115A
– Stick: 60% @ 80A
• Output Range:
– MIG: 30–140A
– TIG: 10–120A
– Stick: 25–90A
• Wire Feed Speed: 40–500 IPM
• Dimensions: 13.6” H × 8.9” W × 18.1” L
• Weight: 34.5 lbs

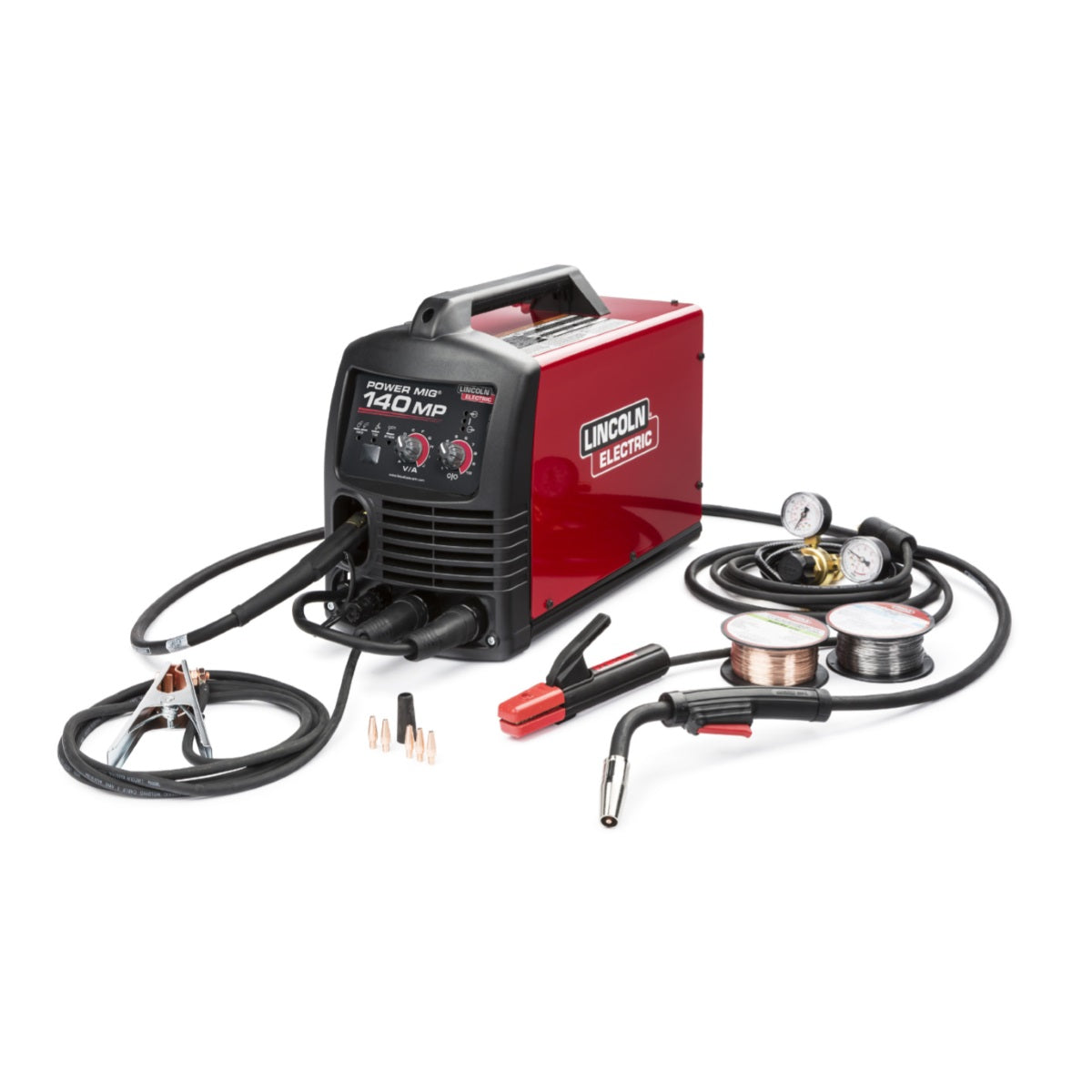

What’s Included

• 10 ft Magnum Pro® 100L MIG Gun (8-pin connection)
• 10 ft Electrode Holder and Lead
• 10 ft Work Clamp and Lead
• Harris Regulator with 4.5 ft Gas Hose
• 2 lb spool of .025" L-56 MIG Wire
• 1 lb spool of .035" NR211 Flux-Core Wire
• Spare .025" and .035" Contact Tips
• Flux-Core and Gas Nozzles
• Spindle Adapter (for 8 in. spools)
• .025–.035 Dual-Track Drive Roll for MIG and flux-core

Whether you’re fixing equipment, fabricating in your garage, or hitting the road for a job, the Power MIG® 140 MP packs professional-grade features into a portable, user-friendly design that’s built to perform.
