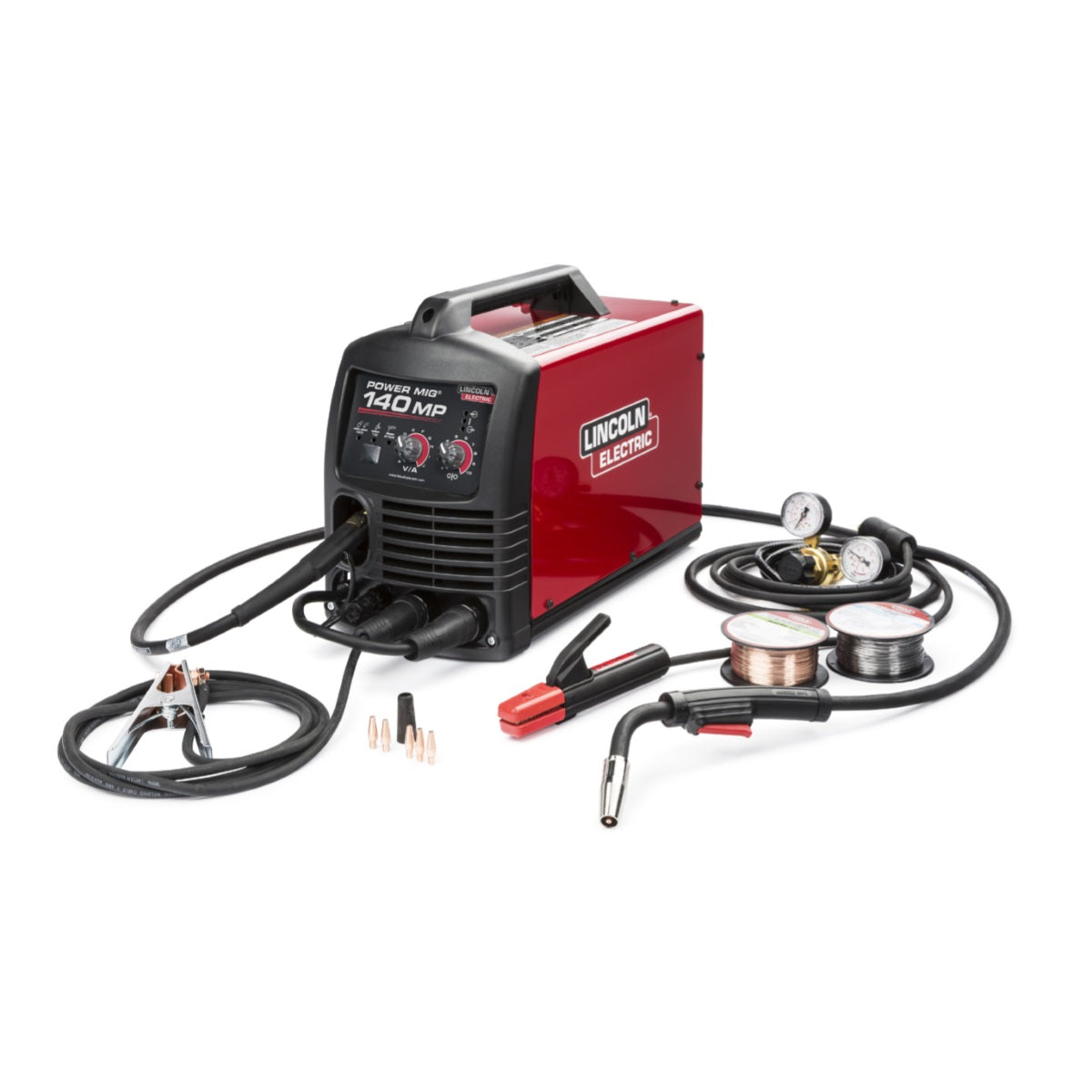

Lincoln Power MIG® 140 MP Multi-Process Welder
Portable. Powerful. Perfect for the Weekend Warrior.

The Lincoln Power MIG® 140 MP is the ideal 3-in-1 welder for DIYers, hobbyists, and anyone looking for professional versatility in a compact package. This multi-process powerhouse handles MIG, flux-core, stick, and DC TIG welding, giving you the freedom to tackle a wide range of materials and jobs with a single machine.

Operating on standard 120V household power and weighing only 34.5 lbs, the 140 MP is road-ready and jobsite-friendly. With an intuitive control setup, fast tool-less wire drive access, and smooth arc performance, it’s the perfect blend of ease and capability—whether you're welding in your garage or on the go.

⚠️ Note: DC TIG welding is suitable for mild steel and stainless steel only. To weld aluminum, you’ll need the SG100 Spool Gun (K4360-1), sold separately.

Key Features

🔧 True Multi-Process Welding
• Weld MIG, flux-cored, stick, and DC TIG—all in one machine
• TIG torch and foot control included for out-of-the-box TIG capability

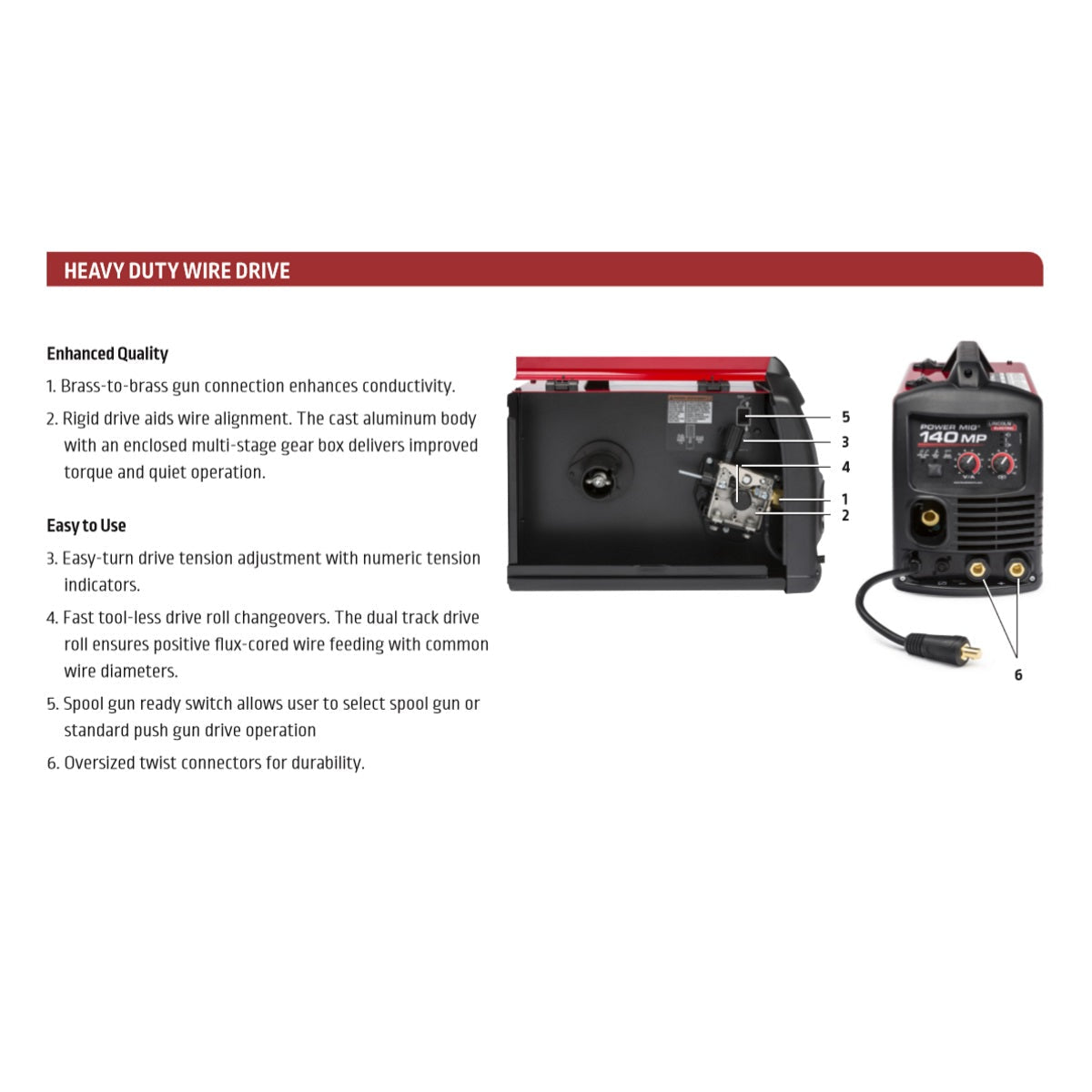

⚙️ Tool-Less Drive Roll Changeover
• Quickly swap wire sizes and types with no tools required

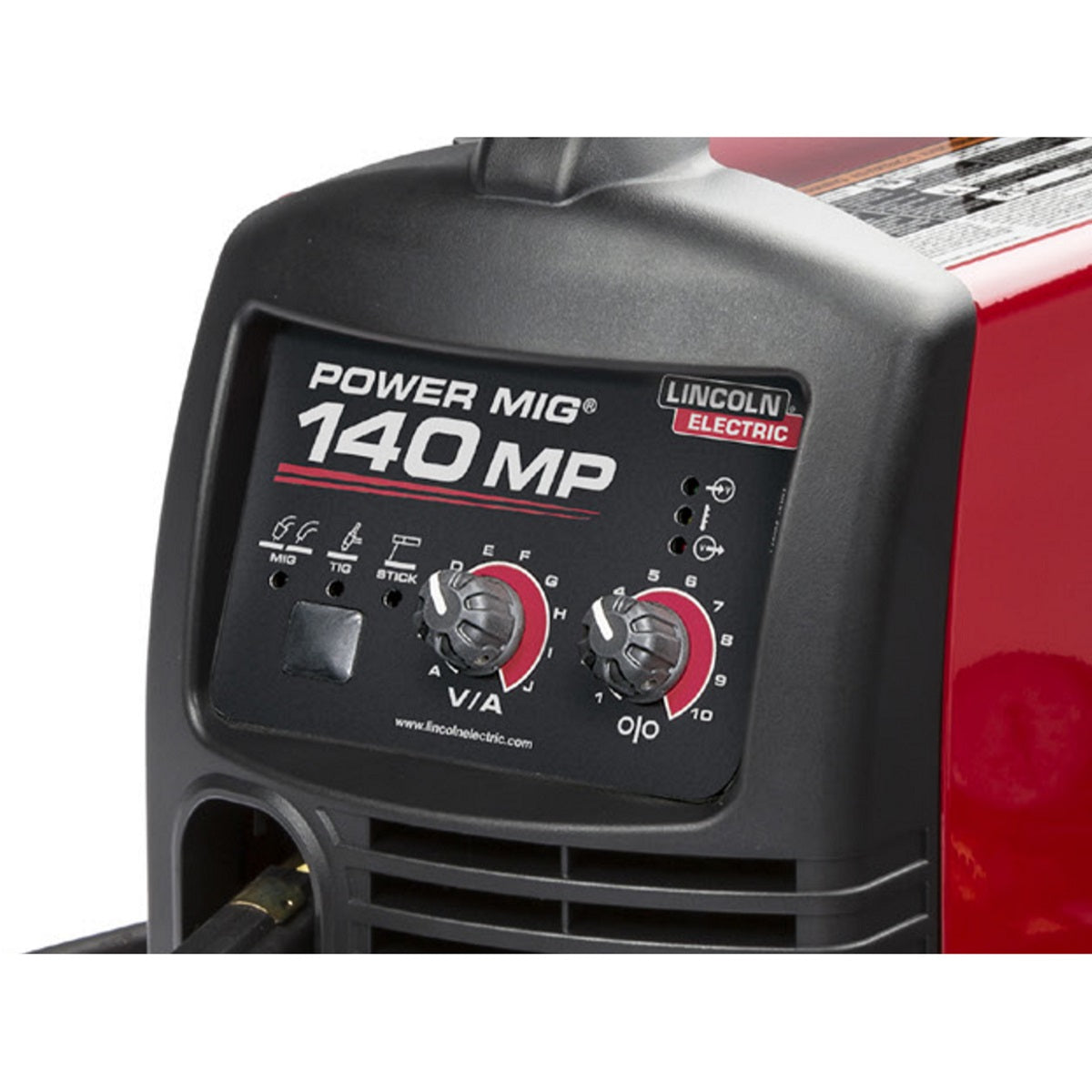

🎛️ Simple, Intuitive Controls
• Easy two-knob operation with a single-button process selector

🔌 Spool Gun Ready
• Built-in switch makes it easy to switch between standard MIG and spool gun

🔗 Heavy-Duty Connections
• Oversized twist-connect terminals for durability and reliability

Quick Specs

• Input Power: 120V | Single Phase | 20A Draw
• Duty Cycle:
– MIG: 60% @ 95A
– TIG: 60% @ 115A
– Stick: 60% @ 80A
• Output Range:
– MIG: 30–140A
– TIG: 10–120A
– Stick: 25–90A
• Wire Feed Speed: 40–500 IPM
• Dimensions: 13.6” H × 8.9” W × 18.1” L
• Weight: 34.5 lbs

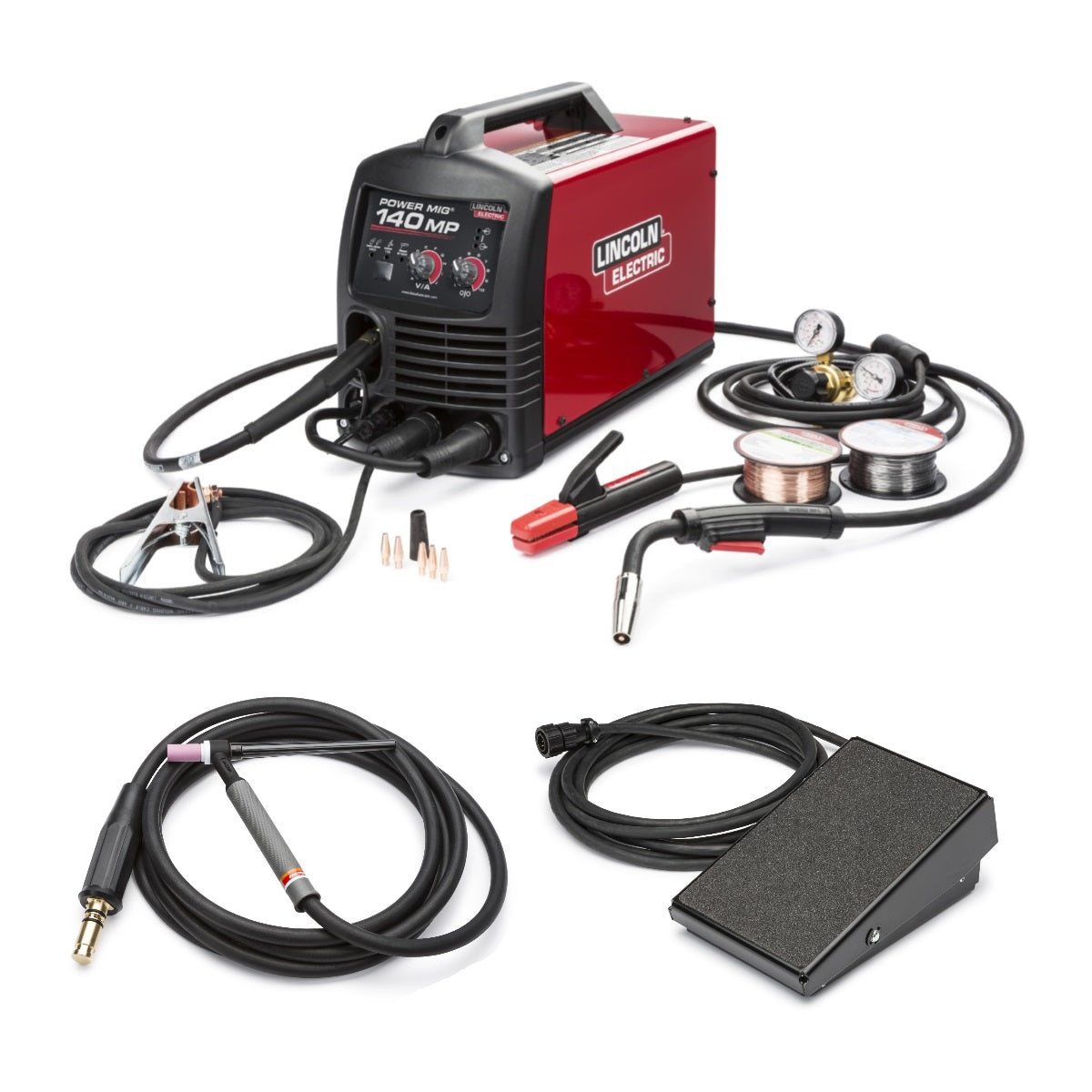

What’s Included

• 10 ft Magnum Pro® 100L MIG Gun (8-pin connection)
• 10 ft Electrode Holder and Lead
• 10 ft Work Clamp and Lead
• Harris Regulator with 4.5 ft Gas Hose
• 2 lb Spool of .025" L-56 MIG Wire
• 1 lb Spool of .035" NR211 Flux-Cored Wire
• Spare Contact Tips: .025" and .035"
• Gas and Flux-Core Nozzles
• Spindle Adapter (for 8 in. wire spools)
• .025–.035 Dual-Track Drive Roll for MIG and flux-core
• 12.5 ft Air-Cooled TIG Torch
• Wired Foot Control for hands-free TIG amperage control

Whether you're upgrading from a basic welder or adding flexibility to your toolkit, the Power MIG® 140 MP delivers pro-grade results in a compact, user-friendly machine that keeps up with your projects.
