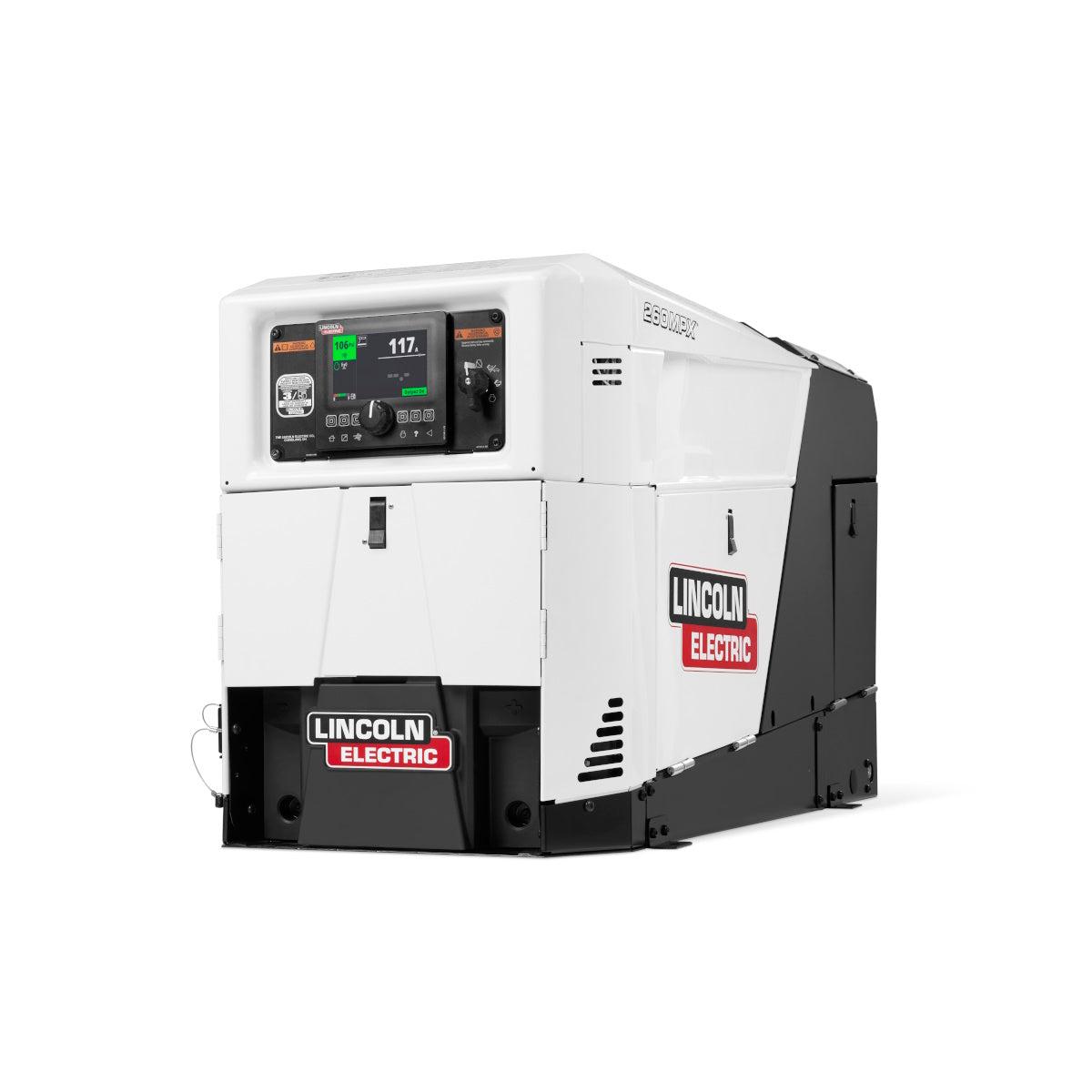

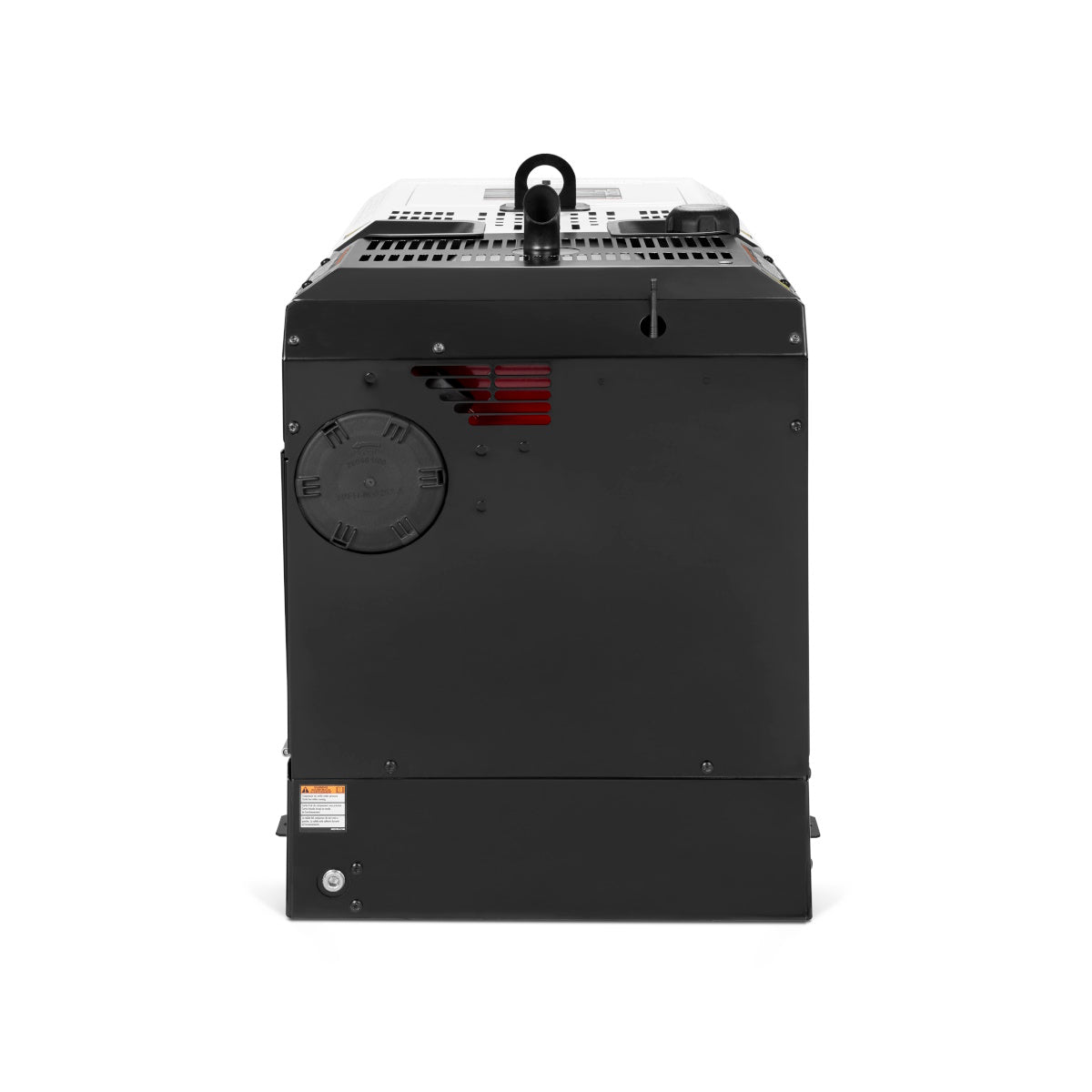

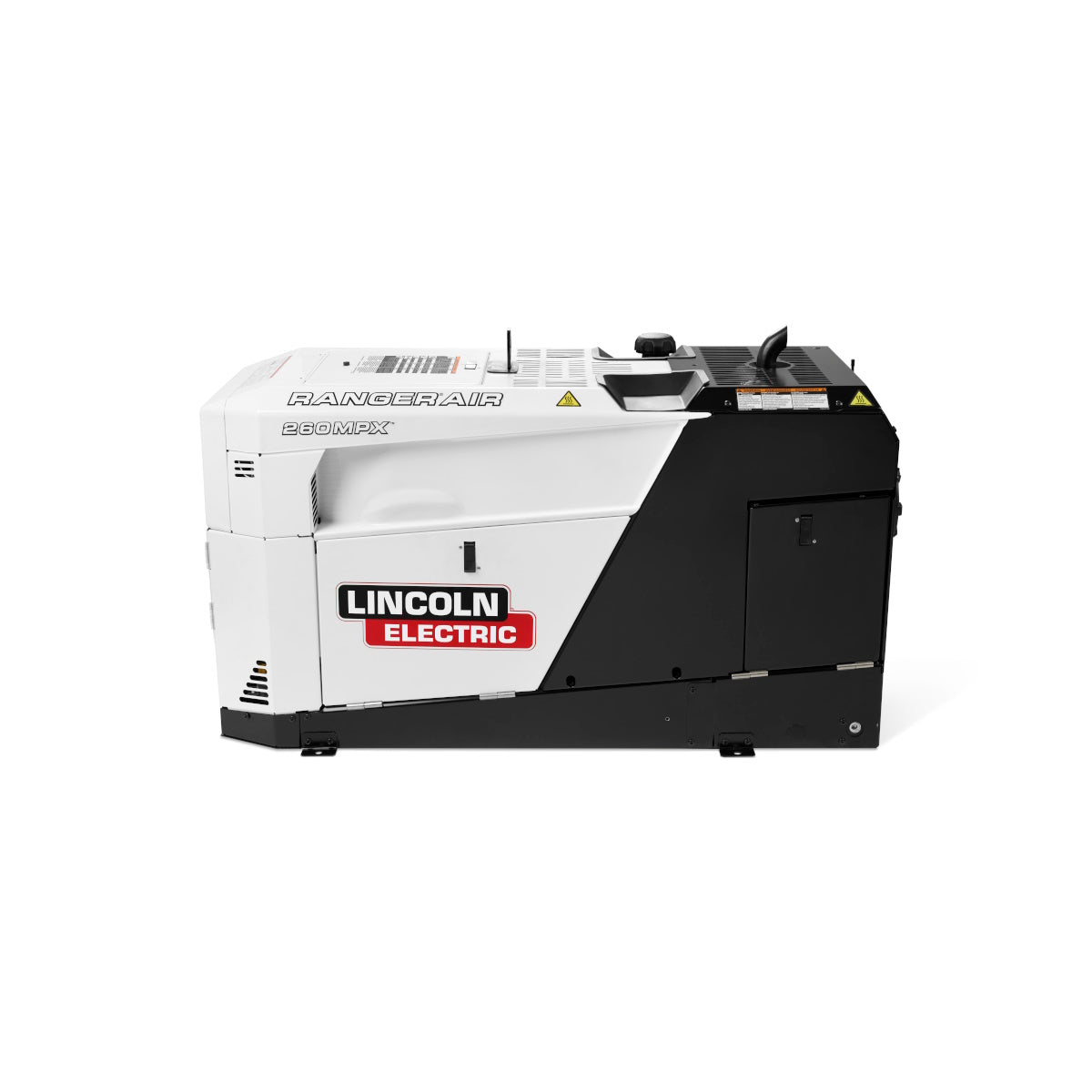

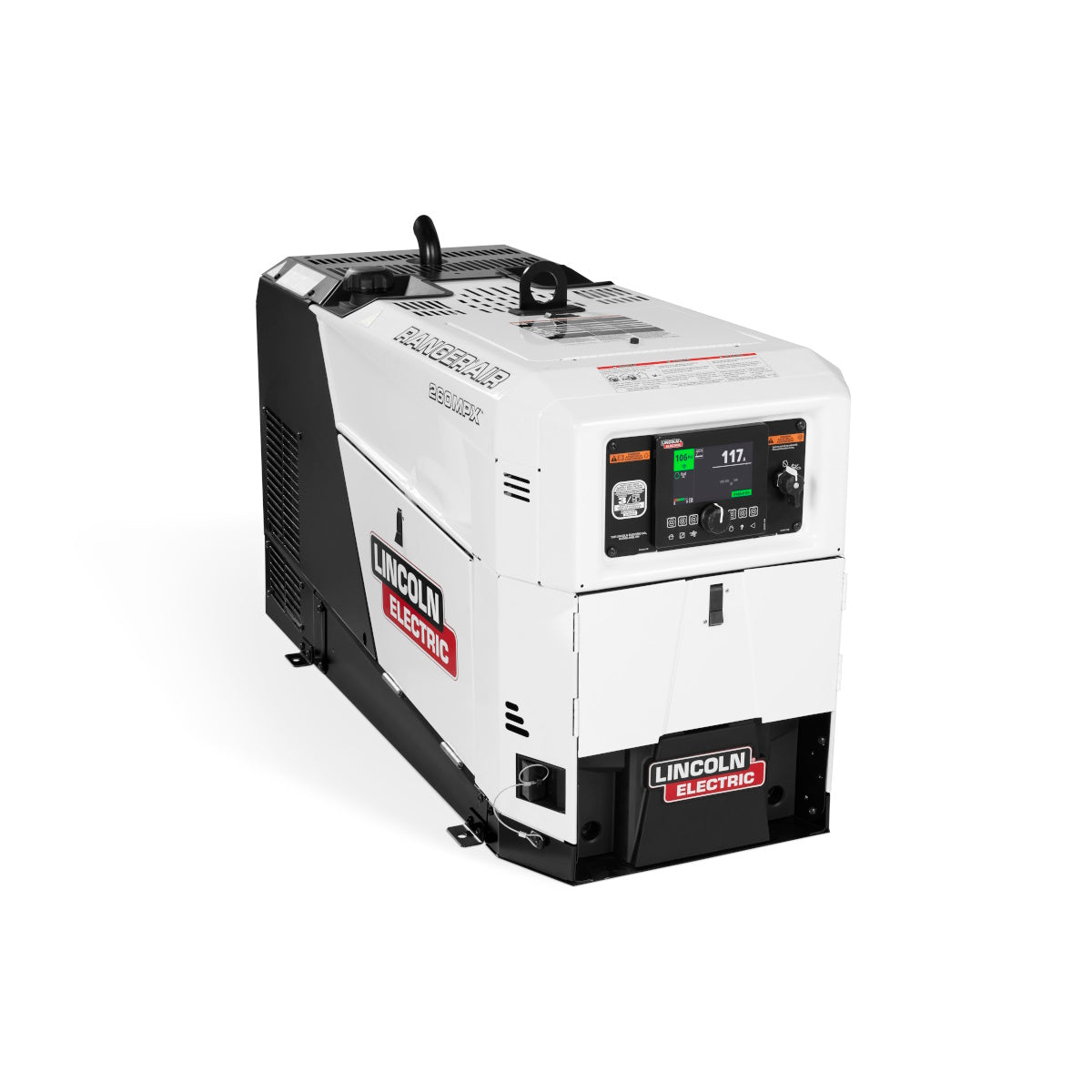

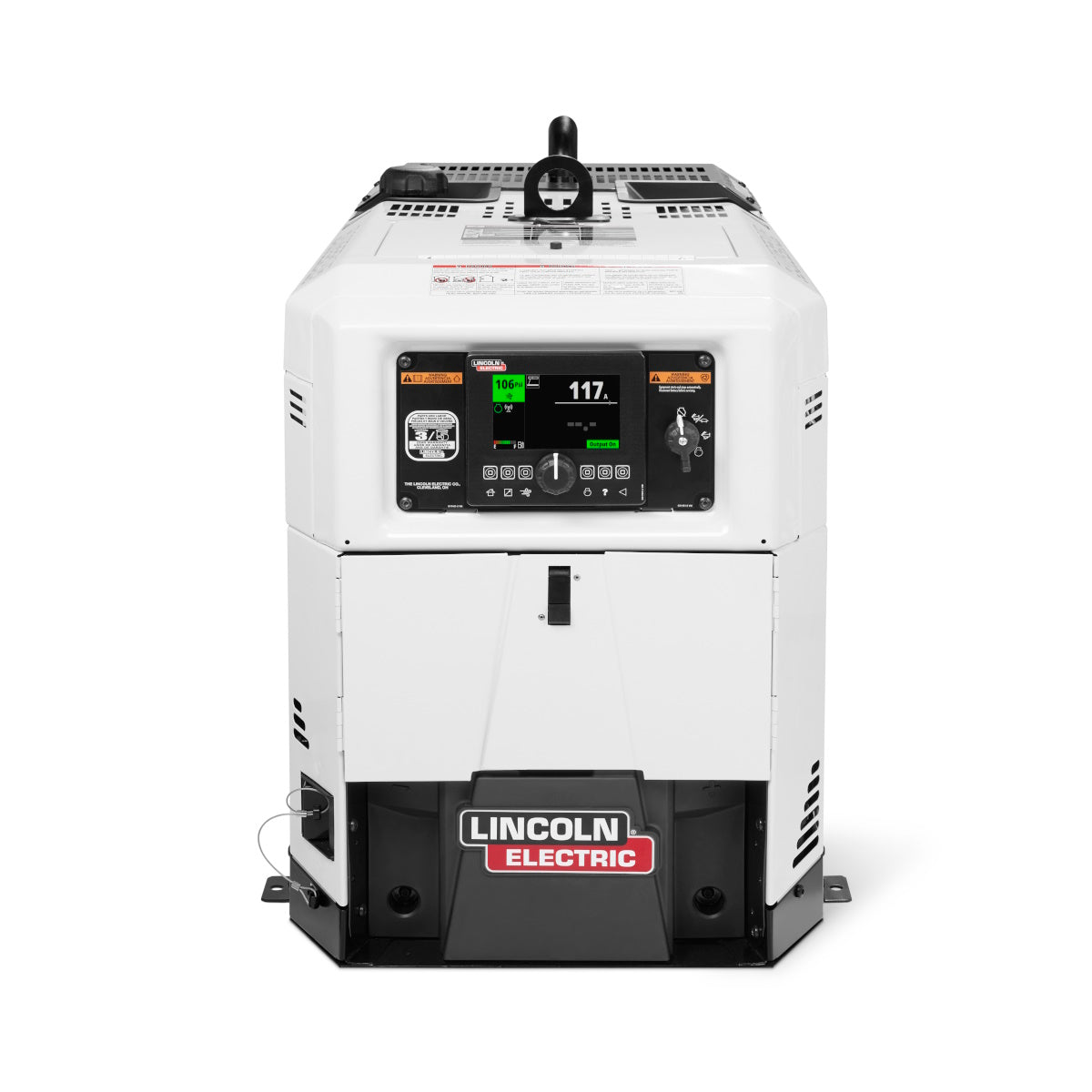

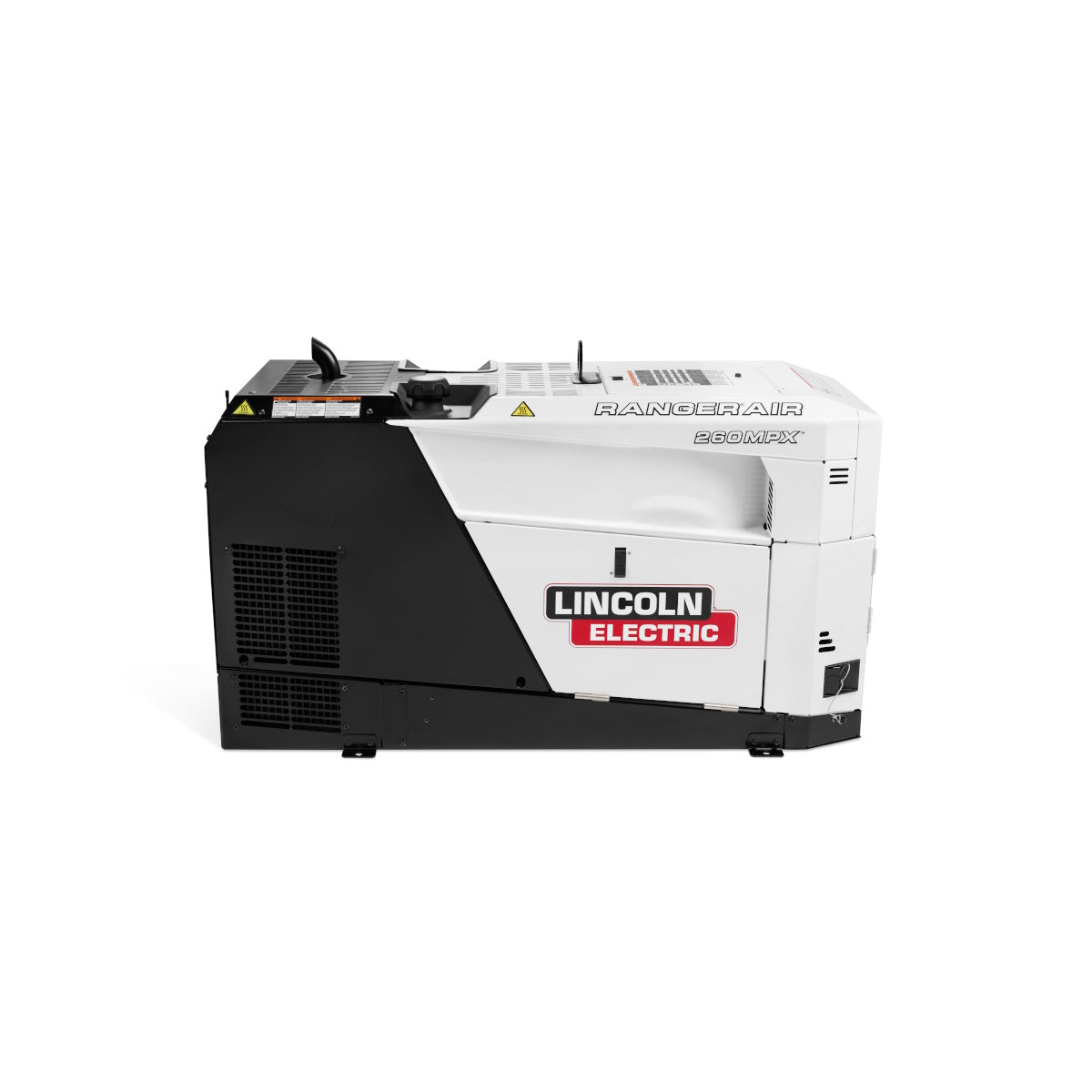

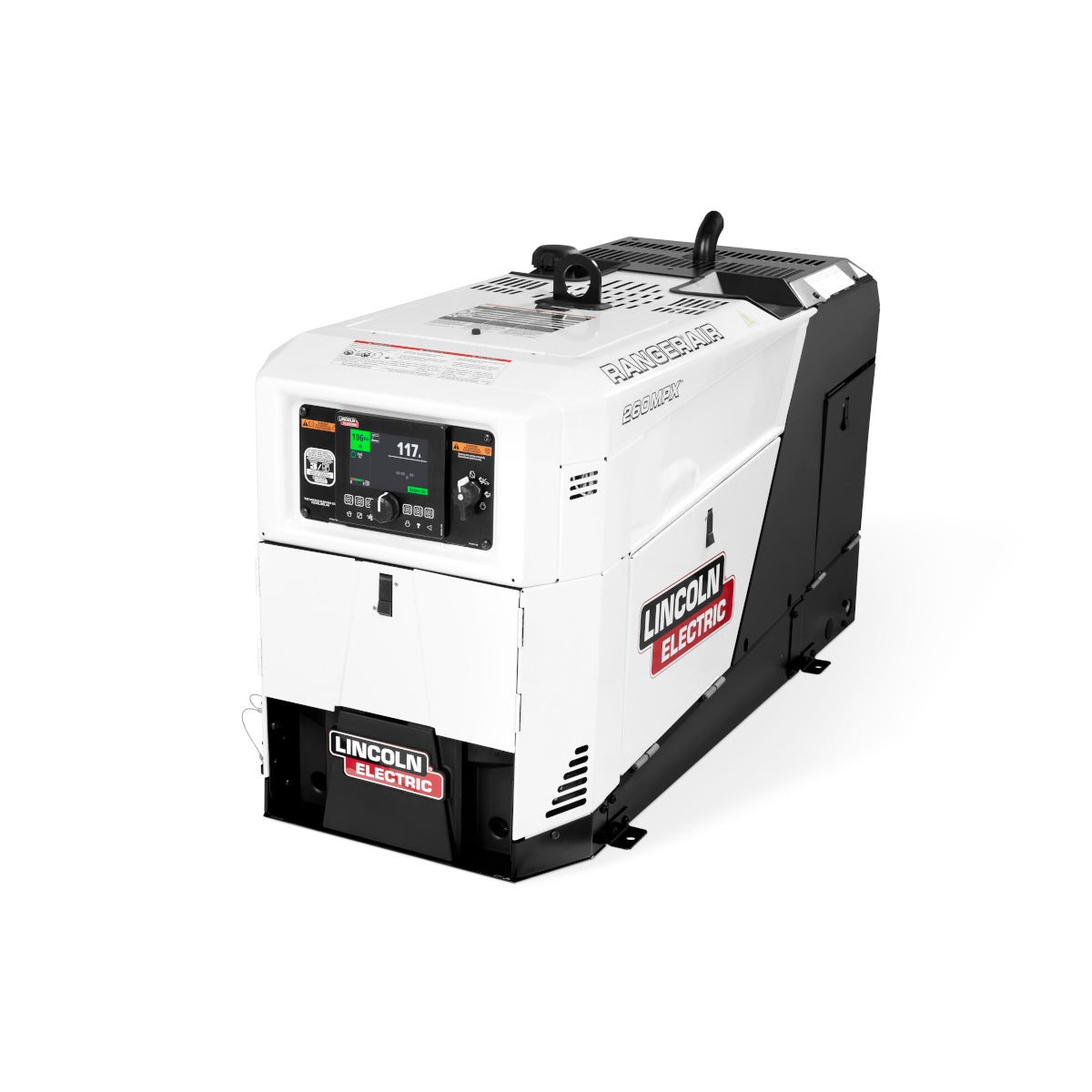

Lincoln Ranger® Air 260 MPX Engine Driven Welder (K5238-1)
$16,244.87 USD
Shipping calculated at checkout.

The Ranger Air 260MPX™ combines everything you need in a rugged, compact package—welding, air compression, battery charging, and power generation—making it the ultimate solution for jobsite versatility. Whether you're running tools, inflating tires, welding, or jump-starting equipment, this machine delivers exceptional performance with no compromises.

Key Highlights:

🔧 Air Compressor
Equipped with a Vanair rotary screw compressor, the Ranger Air 260MPX delivers 40 CFM @ 150 PSI—up to 30% more air power than other machines in its class. Easily run 1" impact wrenches, blow out lines, or inflate tires faster, saving you time and labor.

⚡ Generator Power
With 11,500W peak and 9,000W continuous AC output, the generator powers tools and sensitive electronics with <5% THD. Weld and run tools simultaneously without performance drops.

🔋 Battery Support
Includes jump assist and charging capabilities for both 12V and 24V systems. Delivers up to 260 amps of cold-cranking power to get equipment started and keep productivity moving.

🔥 Multi-Process Welding
Supports Stick, TIG, MIG, Flux-Cored, and direct-connect spool gun with a 260A @ 100% duty cycle—ideal for demanding welds across a wide range of applications.

📏 Compact & Portable
Its compact footprint makes it easier to maneuver and frees up valuable truck or trailer space for additional tools and gear.

🧠 Smart Features for Smarter Work

  • Ready.Set.Weld® Technology: Step-by-step parameter setup simplifies welding for operators of all skill levels.

  • Maintenance Alerts: Real-time engine data and customizable service reminders help extend machine life.

  • CrossLinc® Remote Technology: Adjust weld settings at the arc via one common cable—reducing clutter and improving safety.

  • Chopper Technology®: Enjoy smoother starts, low spatter, and clean, consistent arcs.

  • Auto Start/Stop & Wireless Fob: Engine idles or shuts down when not in use, reducing fuel costs and wear. Tap-to-start welding when you're ready.

Whether you're in construction, maintenance, or fabrication, the Ranger Air 260MPX is your go-anywhere, do-everything solution—built to power your tools, fuel your productivity, and simplify your workday.
